La tecnologia introdotta da Carbon è adatta sia alla prototipazione che alla produzione di pre-serie e serie. L’alta affidabilità e l’ampia gamma di materiali la rende una soluzione efficace anche in situazioni complesse.

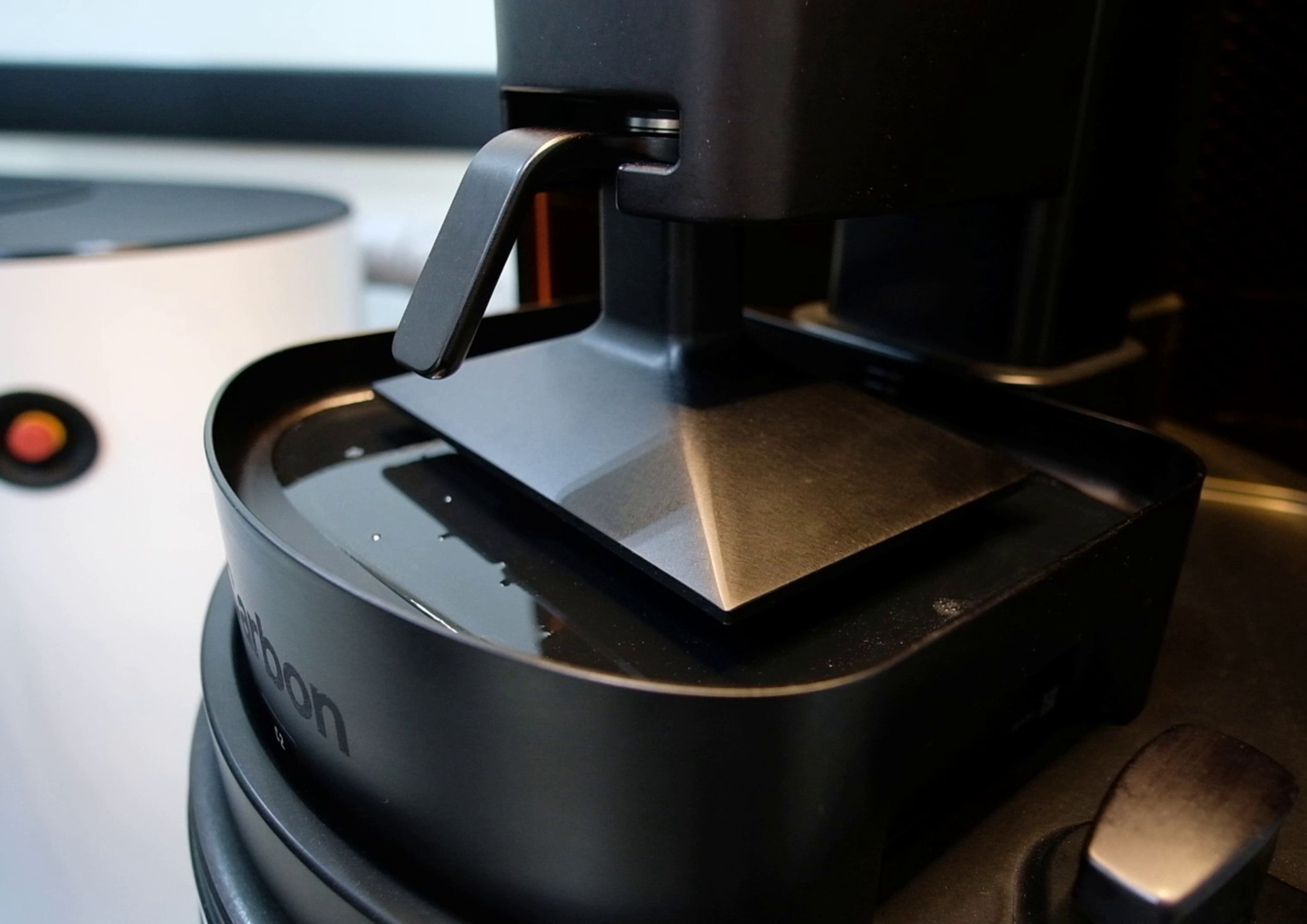

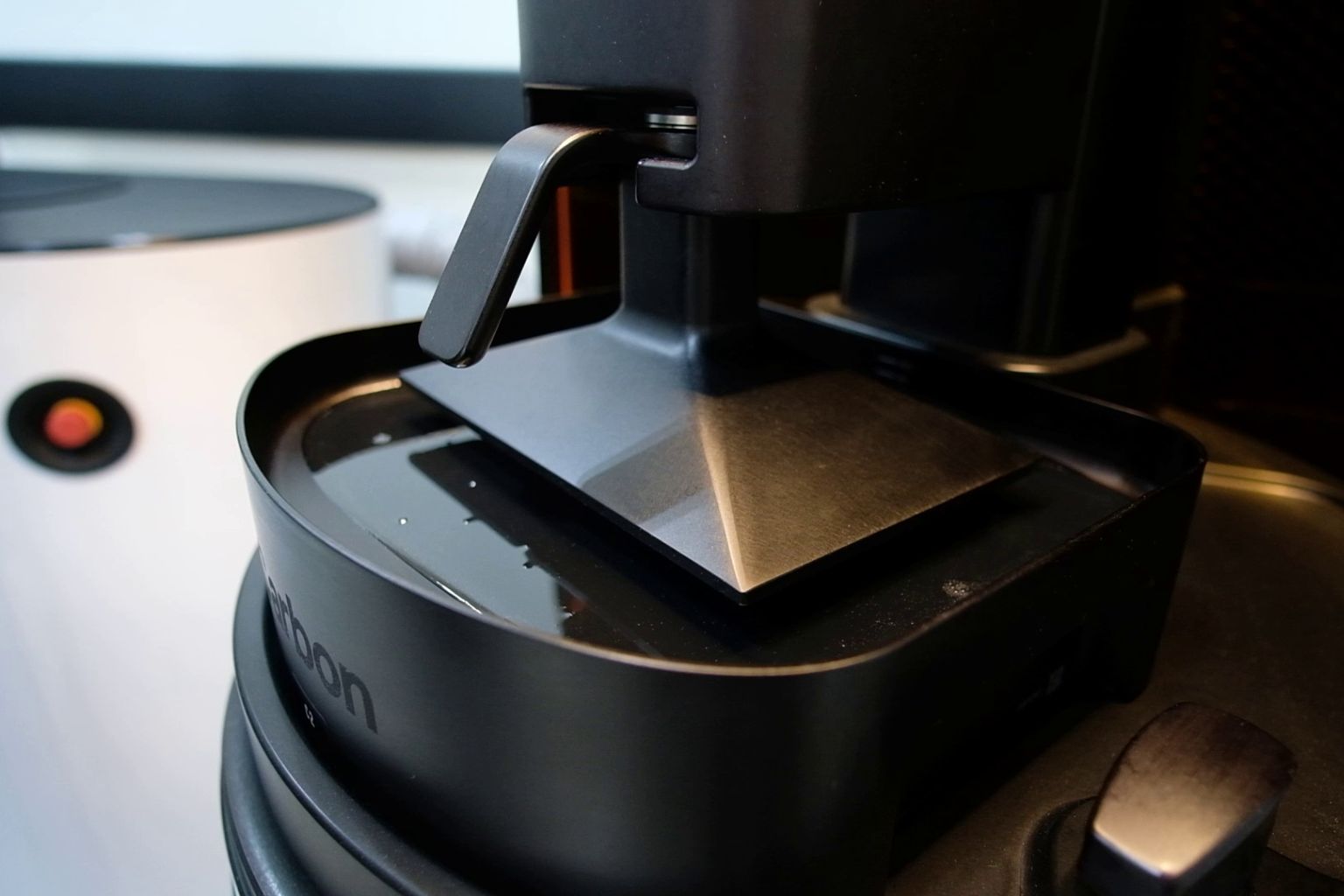

Carbon Digital Light SynthesisTM

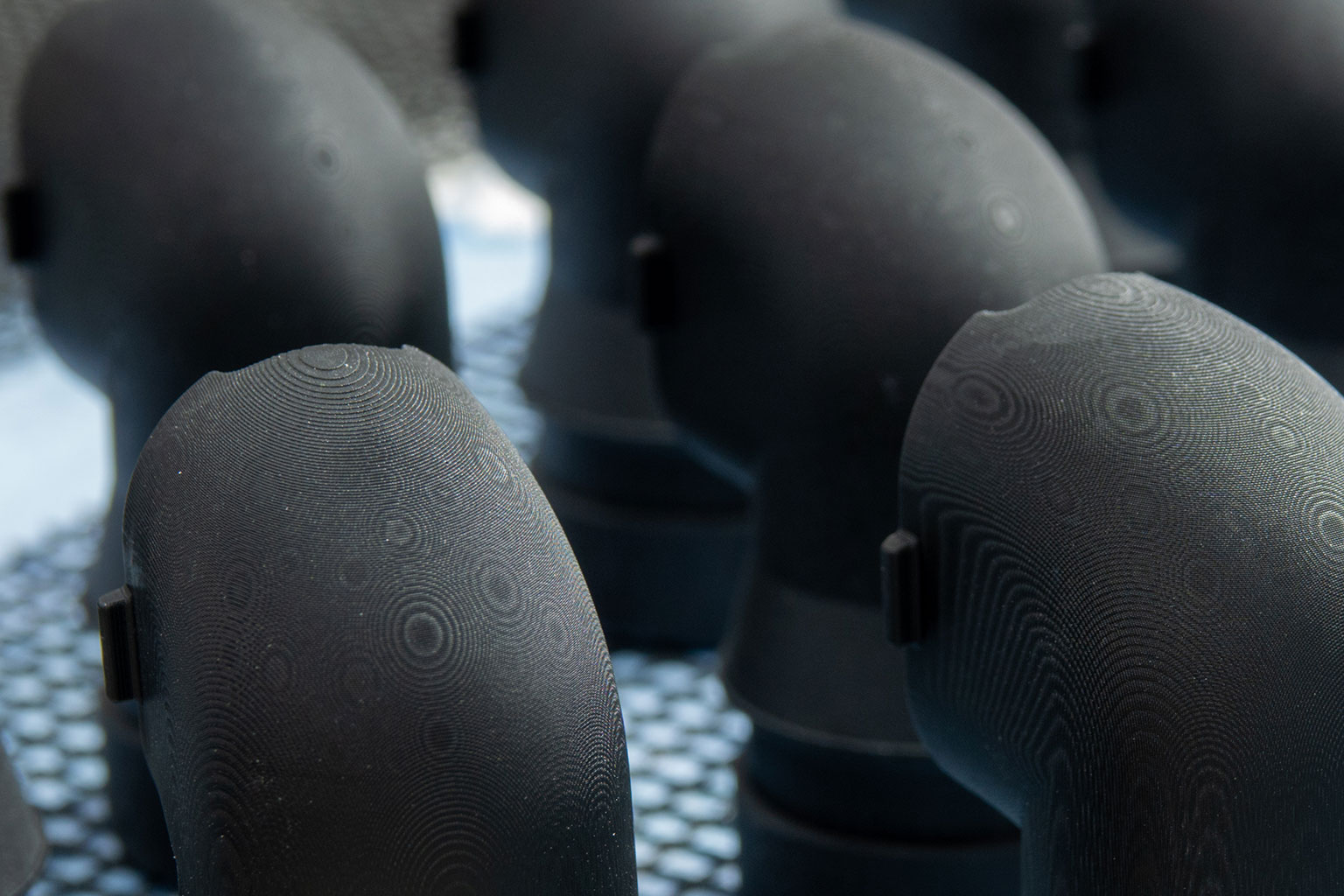

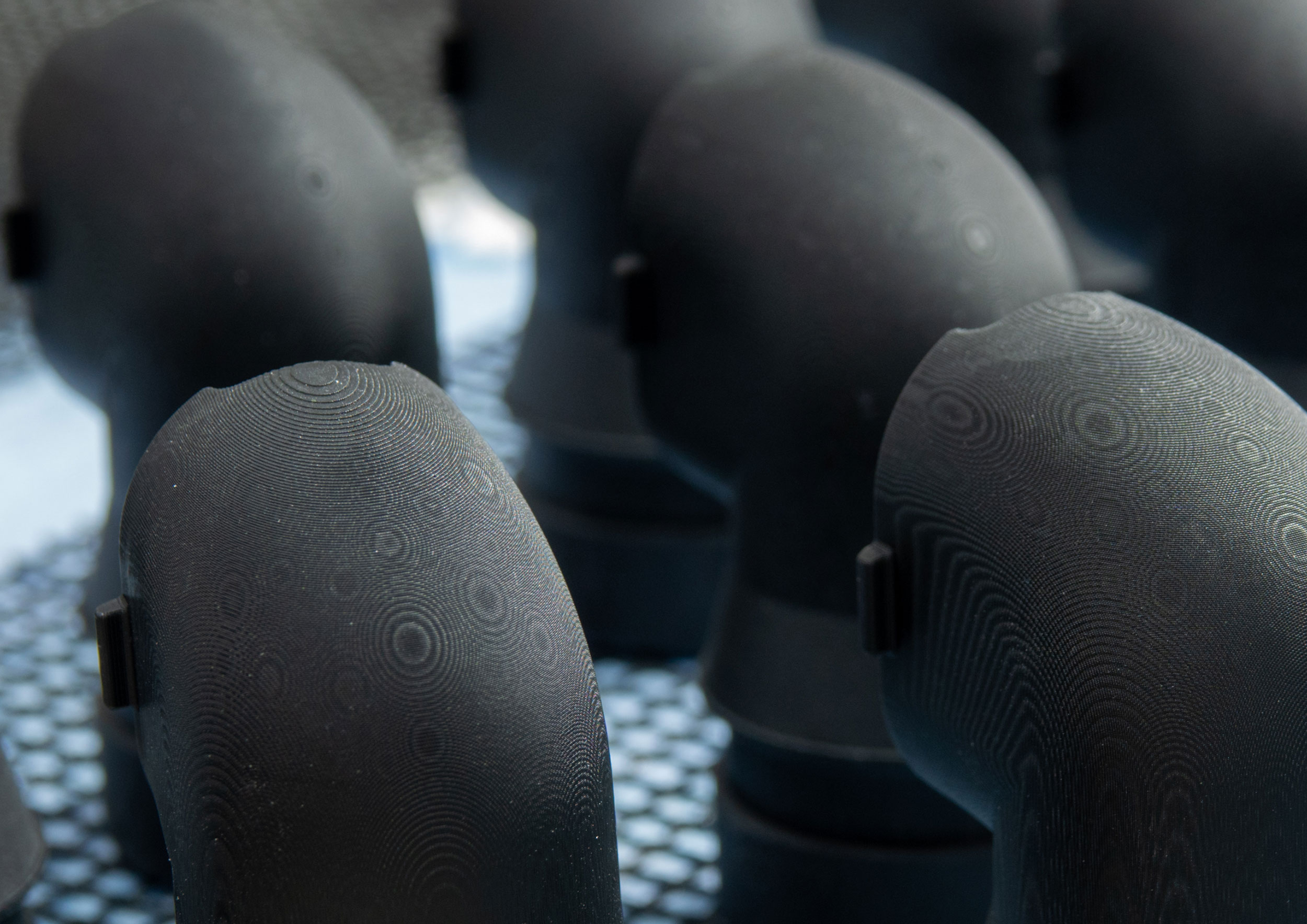

Resine ed elastomeri prestazionali per produzione seriale.

  JUNO: Carbon® Production Network

Materials
Materials EPX
82
RPU
70
MPU
100
CE
221
LOCTITE
IND405
Ultimate tensile strenght MPa 80 40 35 85 35
Elongation at break % 5 100 25 3 16
Tensile modulus MPa% 2800 1700 1200 3900 1300
Shore hardness 89D 80D 81D 92D 74,7D
Impact strenght
J/m Notched Izod, ASTM D256
45 15 30 15 50
Heat Defection
°C @ 0,45MPa ASTM D468
130 60 50 230 53
Comparable thermoplastic 20% glass filled PBT ABS / PC ABS Medical grade ABS Glass filled nylon Clear PP
Biocompatibility:
Cytotoxicity
Materials Elastomers
Materials
Elastomers
SIL
30
EPU
40
Ultimate tensile strenght MPa 3,5 9
Elongation at break % 350 300
Tensile modulus MPa% N/A N/A
Shore hardness 35A 68A
Impact strenght
J/m Notched Izod, ASTM D256
N/A N/A
Heat Defection
°C @ 0,45MPa ASTM D468
N/A N/A
Comparable thermoplastic Silicone TPU
Biocompatibility:
Cytotoxicity

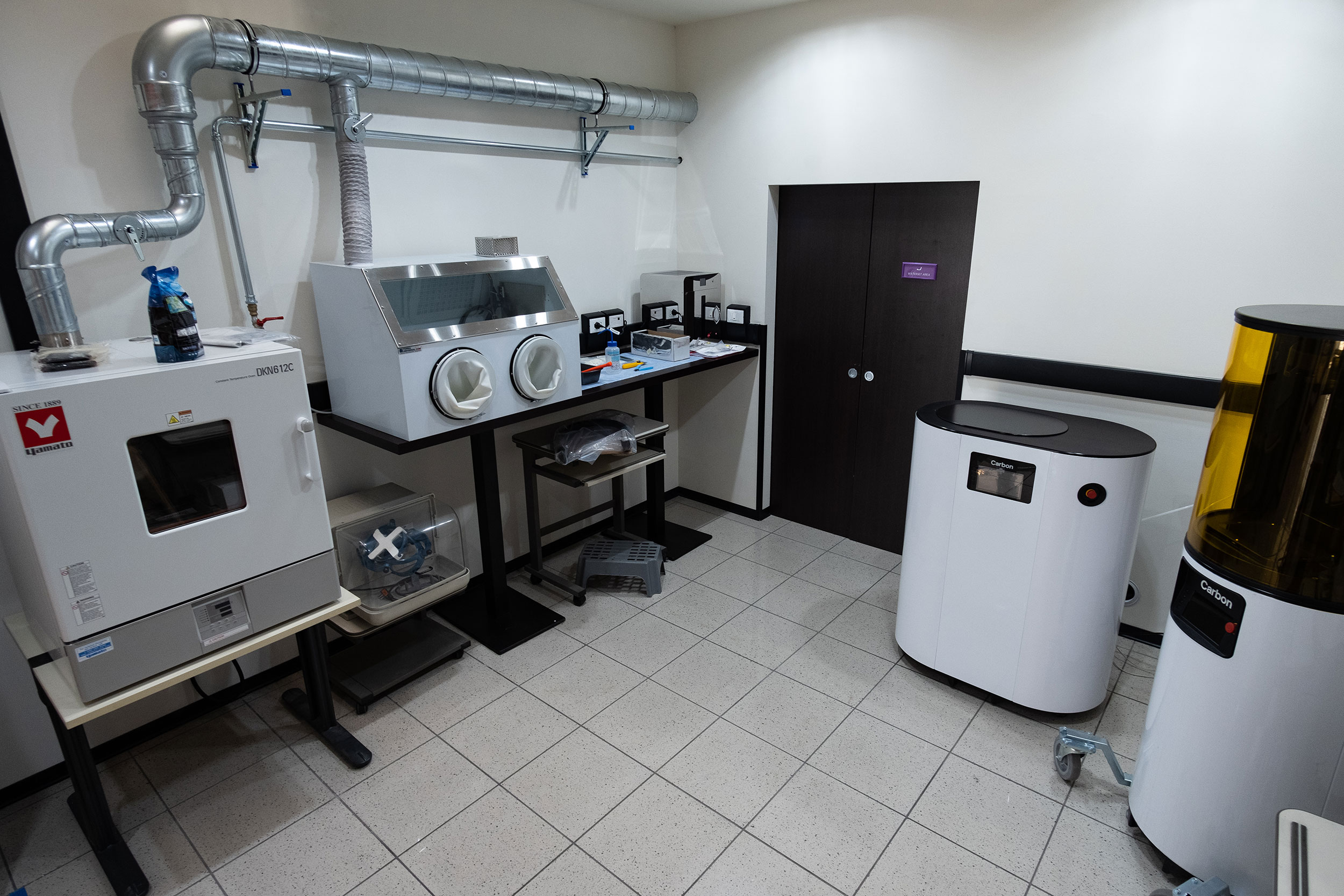

Juno è parte del Carbon Production Network

Juno è parte del Carbon Production Network

Il Carbon Production Network è un ecosistema di aziende dimostratesi leader sia nella progettazione industriale che nell'impiego della tecnologia sviluppata da Carbon®, azienda della Silicon Valley. Juno è tra le aziende certificate nell'utilizzo della piattaforma Carbon, dalla progettazione alla produzione.
