The Additive Manufacturing Galaxy
Sintering of
metal alloys
Complex geometries
Structural weight reduction
Excellent mechanical properties
Elements made by metal additive manufacturing have mechanical properties identical to those achieved by casting or machine tooling.
Freedom of design

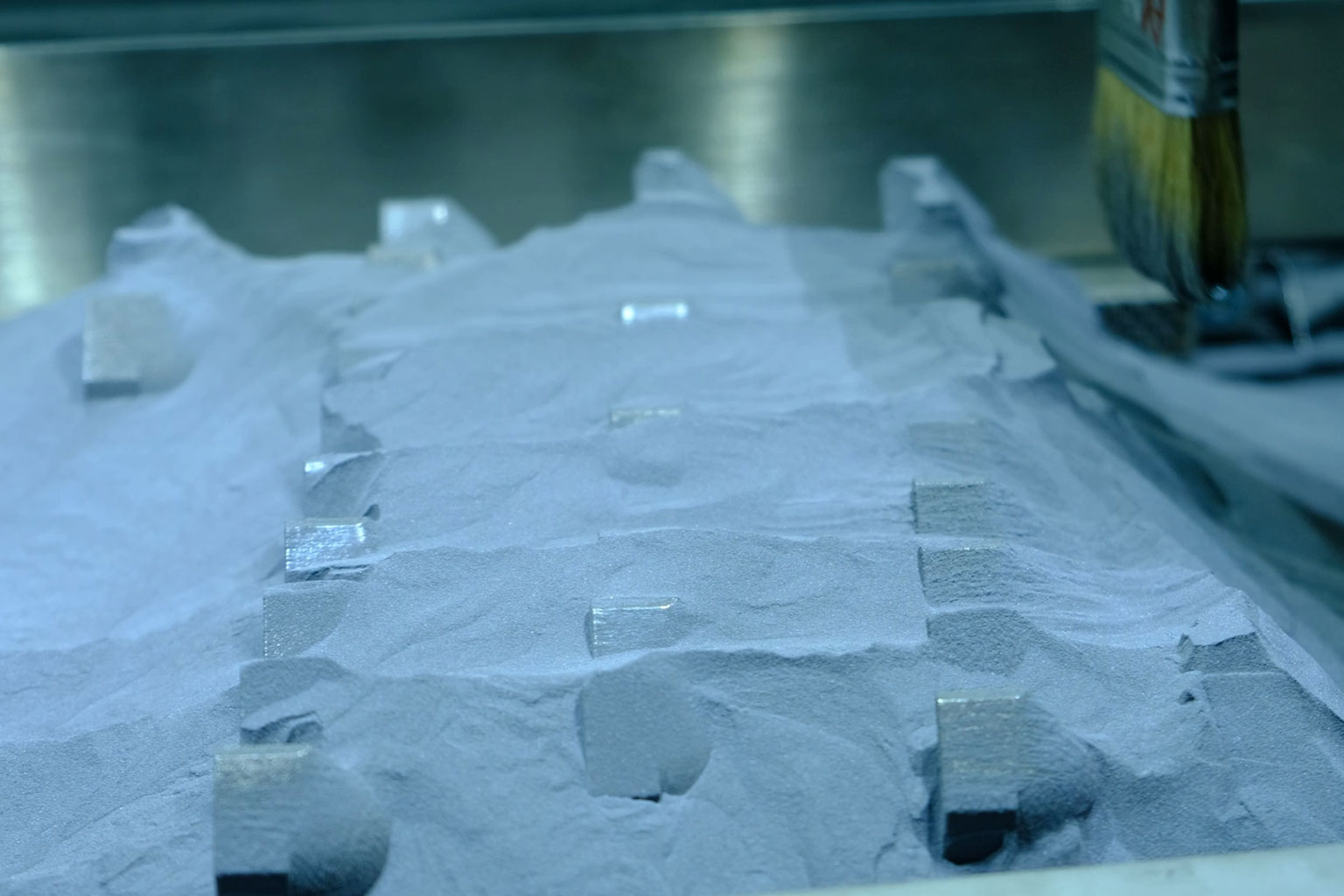

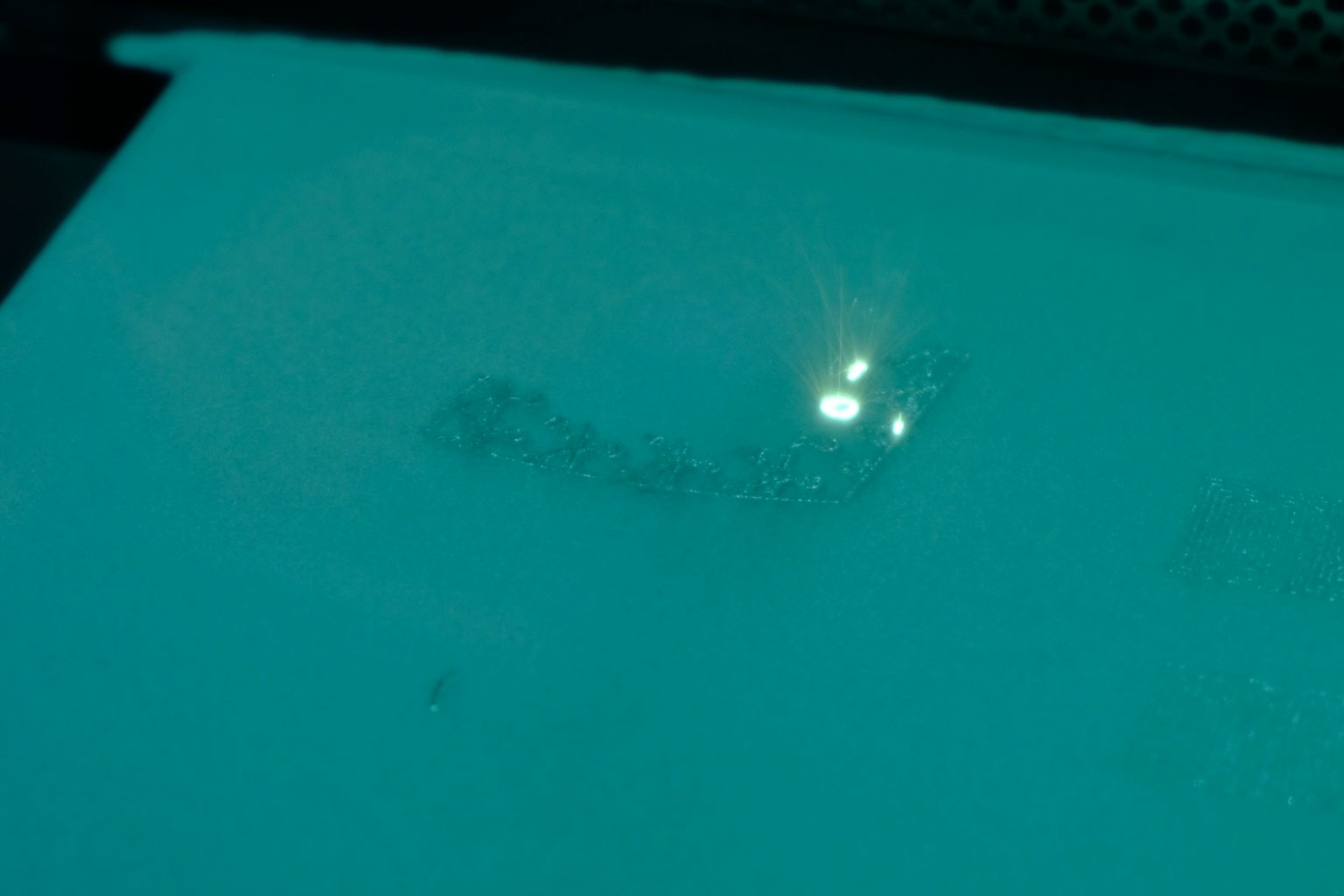

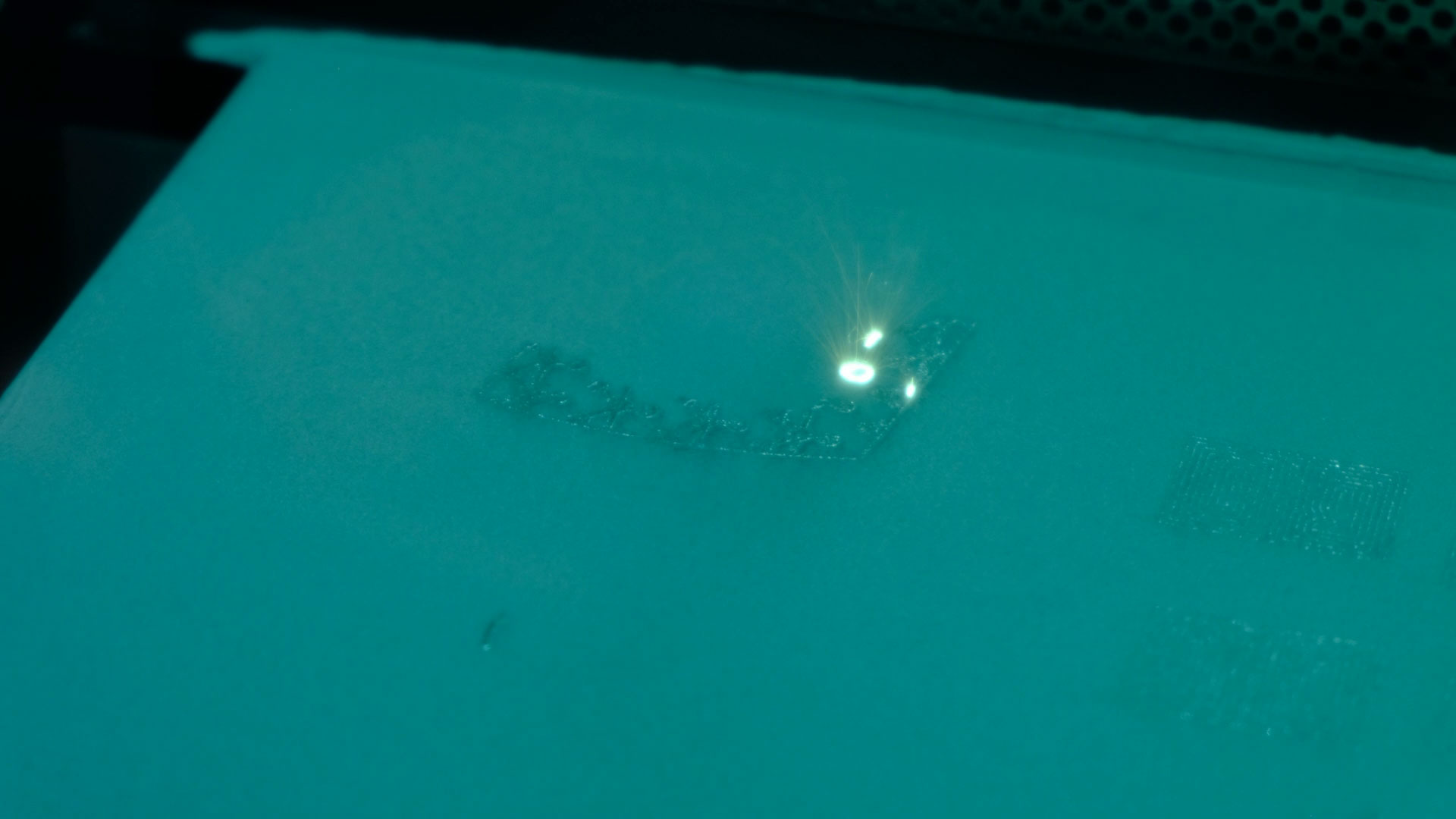

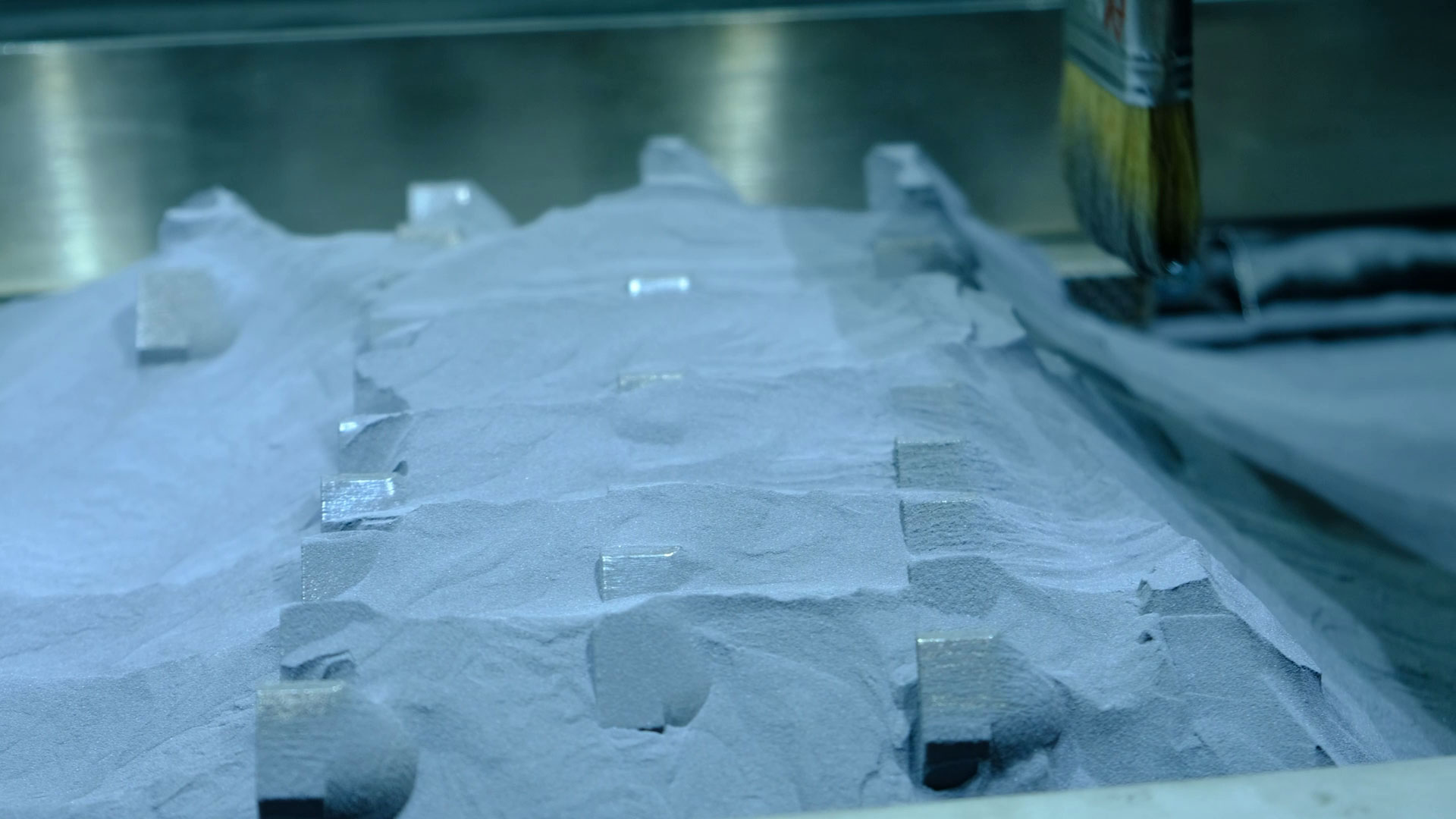

With additive manufacturing, metal powders are sintered using a laser beam layer upon layer. The result is a complete freedom of design in terms of shapes, as there is no need to comply with toolpaths.
Post processing
Elements produced via additive manufacturing can be subjected to post-processing operations in the same way as a part machined from solid: heat treatment, hip, threading, reaming, welding, etc.
Constantly evolving materials
Atomised metal alloys suitable for additive manufacturing are undergoing a phase of rapid innovation, both in terms of quantity and performance.
Technical Data
| Materials | Aluminium AISi10Mg | Stainless Steel 316L | Titanium Ti6Al4V | ||
|---|---|---|---|---|---|
| As built | Heat treated | As built | Heat treated | ||
| Tensile strenght MPa | 1270 (ultimate) | 1040 (ultimate) | |||
| Horizontal direction (XY) | 445±20 | 335±20 | 600-640 | ||
| Vertical direction (Z) | 405±20 | 325±20 | 540-570 | ||
| Yield strenght % (MPa) | 1270 (ultimate) | 1040 (ultimate) | |||
| Horizontal direction (XY) | 275±20 | 225±20 | 500-540 | ||
| Vertical direction (Z) | 230±10 | 220±10 | 450-480 | ||
| Modulus of elasticity (GPa) | N.A. | N.A. | |||
| Horizontal direction (XY) | 70±5 | 70±5 | N.A. | ||
| Vertical direction (Z) | 65±5 | 65±5 | N.A. | ||
| Elongation at break % | 8.7 | 14.0 | |||
| Horizontal direction (XY) | 6.5±2 | 11±2 | 35-40 | ||
| Vertical direction (Z) | 3.5±2 | 7±2 | 45-54 | ||
| Fatigue Strenght (Z) Mpa | 97±7 | 97±7 | N.A. | N.A. | |
| Hardness HBW | 120±5 | 120±5 | N.A. | N.A. | |
| Density g/cm3 | 2.68 | 2.68 | ≥7.97 | 4.4 | |
