The Additive Manufacturing Galaxy
Multi Jet
Fusion® HP®
Serial production
with no upfront costs
Production speed
Fast turnaround of batches of hundreds or thousands of parts in a short turnaround time.
An alternative to molding
HP Multi Jet Fusion is a good alternative to injection molding: no mold, no minimum batch size.

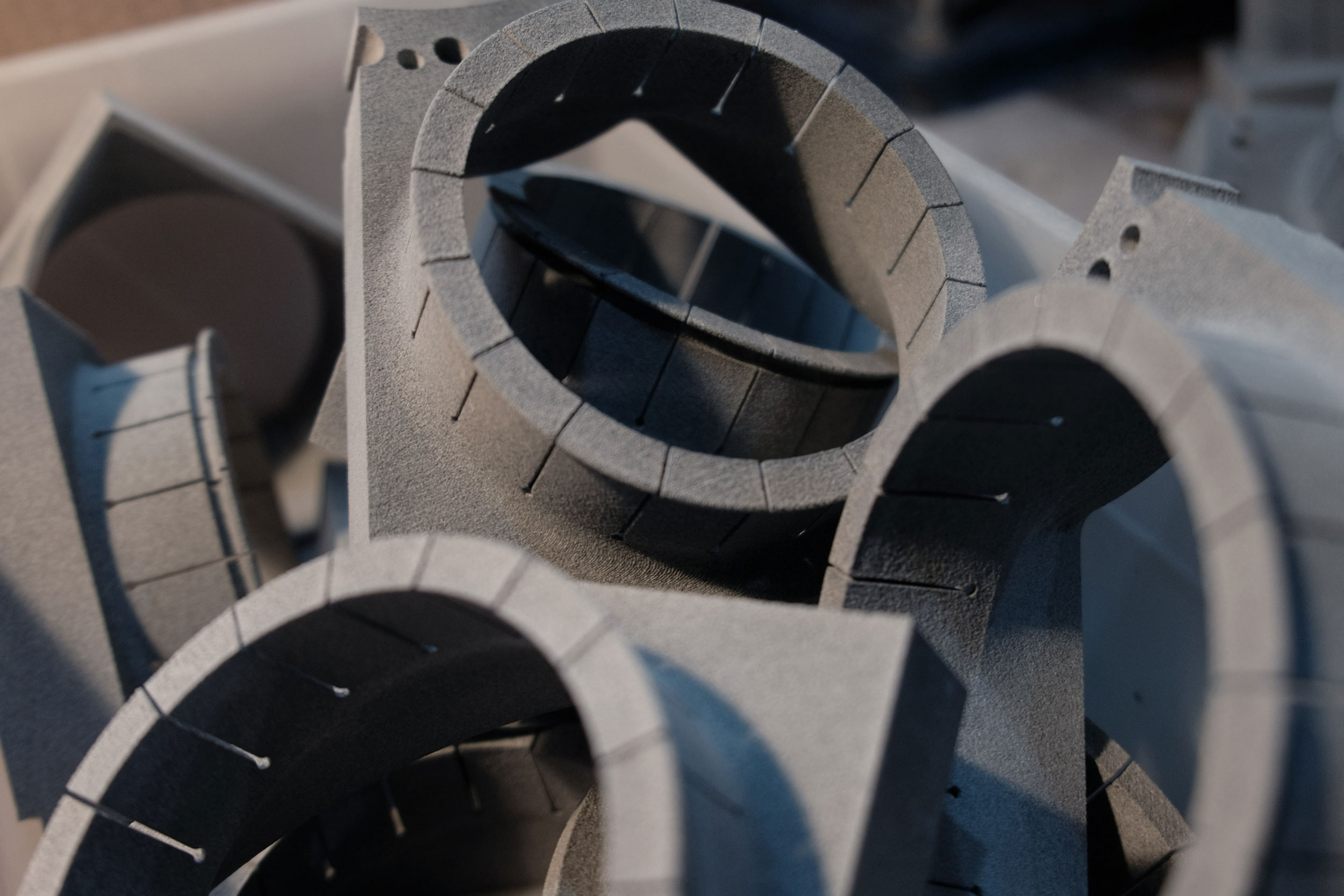

Functional parts
Optimised and specific printing mode which improves mechanical properties while maintaining high accuracy.
High performance materials
A variety of thermoplastics, including glass-filled ones, for the manufacture of rigid functional components with high stability.
Technical data PA12(MJF)
| General Properties | ||
|---|---|---|
| Density of parts | 1,01 g/cm3 | ASTM D972 Standard |
| Mechanical Properties | ||
| Tensile Strength, Max Load - XY | 50 MPa/6960 psi | |
| Tensile Strength, Max Load - Z | 50 MPa/6960 psi | |
| Tensile Modulus (XY) | 1700 MPa/245 ksi | |
| Tensile Modulus (Z) | 1900 MPa/245 ksi | |
| Elongation at Break (XY) | 17% / ASTM D638 | |
| Elongation at Break (Z) | 9% / ASTM D638 | |
| Thermal Properties | ||
| Heat Deflection Temperature (0,45 MPa) (Z) | 175° | |
| Heat Deflection Temperature (1,82 MPa) (Z) | 95° / ASTM D648 | |
Juno is an HP Multi Jet Fusion Tech Center
|
HP Multi Jet Fusion Tech Centers are certified suppliers, part of the international Digital Manufacturing Network, chosen on the basis of their expertise and experience. They can deliver optimal results when providing solutions that use HP Multi Jet Fusion technology. |
